CSN 221482 - DIN 343
CSN 221482 |
Core drills with tree flutes |
HSS |
DIN 343 RN | ||
Workmanship: Material: high-speed steel HSS.Workmanship with 3 cutting edges with nominal size in tolerance H 11 or with dimenssion reduced of material allowance for follow precise working. Usability: Tool of rigid construction to working prebored holes, cast holes or punched holes. Three cutting edges workmanship encreases the accuracy of the hole working, especially the roundnes. |
||
Range: Ø 8,80 ÷ 50,00 mm ( H11) |
Manufacturing Mode: F |
Surface Treatment:
![]() |
![]() |
![]() |
Ordering Code |

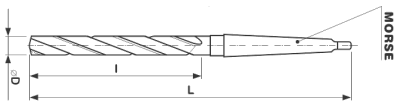

Ø D mm |
L mm |
l mm |
MORSE | Teeth |
Packing pce |
Weight kg/pce |
8,8 | 162 | 81 | 1 | 3 | 1 pc | 0,085 | |
9 H11 | 162 | 81 | 1 | 3 | 1 pc | 0,09 | |
9,8 | 168 | 87 | 1 | 3 | 1 pc | 0,105 | |
10 H11 | 168 | 87 | 1 | 3 | 1 pc | 0,11 | |
10,75 | 175 | 94 | 1 | 3 | 1 pc | 0,115 | |
11 H11 | 175 | 94 | 1 | 3 | 1 pc | 0,12 | |
11,75 | 175 | 94 | 1 | 3 | 1 pc | 0,122 | |
12 H11 | 182 | 101 | 1 | 3 | 1 pc | 0,13 | |
12,75 | 182 | 101 | 1 | 3 | 1 pc | 0,135 | |
13 H11 | 182 | 101 | 1 | 3 | 1 pc | 0,14 | |
13,75 | 189 | 108 | 1 | 3 | 1 pc | 0,16 | |
14 H11 | 189 | 108 | 1 | 3 | 1 pc | 0,16 | |
14,75 | 212 | 114 | 2 | 3 | 1 pc | 0,255 | |
15 H11 | 189 | 108 | 2 | 3 | 1 pc | 0,26 | |
15,75 | 218 | 120 | 2 | 3 | 1 pc | 0,285 | |
16 H11 | 218 | 120 | 2 | 3 | 1 pc | 0,29 | |
16,75 | 223 | 125 | 2 | 3 | 1 pc | 0,305 | |
17 H11 | 218 | 120 | 2 | 3 | 1 pc | 0,31 | |
17,75 | 228 | 130 | 2 | 3 | 1 pc | 0,332 | |
18 H11 | 228 | 130 | 2 | 3 | 1 pc | 0,338 | |
18,7 | 233 | 135 | 2 | 3 | 1 pc | 0,352 | |
19 H11 | 233 | 135 | 2 | 3 | 1 pc | 0,358 | |
19,7 | 238 | 140 | 2 | 3 | 1 pc | 0,384 | |
20 H11 | 233 | 135 | 2 | 3 | 1 pc | 0,39 | |
21,7 | 248 | 150 | 2 | 3 | 1 pc | 0,42 | |
22 H11 | 248 | 150 | 2 | 3 | 1 pc | 0,427 | |
23,7 | 281 | 160 | 3 | 3 | 1 pc | 0,46 | |
24 H11 | 281 | 160 | 3 | 3 | 1 pc | 0,47 | |
24,7 | 281 | 160 | 3 | 3 | 1 pc | 0,475 | |
25 H11 | 281 | 160 | 3 | 3 | 1 pc | 0,485 | |
25,7 | 286 | 165 | 3 | 3 | 1 pc | 0,71 | |
26 H11 | 286 | 165 | 3 | 3 | 1 pc | 0,72 | |
27,7 | 291 | 170 | 3 | 3 | 1 pc | 0,85 | |
28 H11 | 291 | 170 | 3 | 3 | 1 pc | 0,86 | |
29,7 | 296 | 175 | 3 | 3 | 1 pc | 0,955 | |
30 H11 | 296 | 175 | 3 | 3 | 1 pc | 0,96 | |
31,6 | 306 | 185 | 3 | 3 | 1 pc | 1,152 | |
32 H11 | 334 | 185 | 4 | 3 | 1 pc | 1,49 | |
33,6 | 339 | 190 | 4 | 3 | 1 pc | 1,555 | |
34 H11 | 339 | 190 | 4 | 3 | 1 pc | 1,56 | |
34,6 | 339 | 190 | 4 | 3 | 1 pc | 1,65 | |
35 H11 | 339 | 190 | 4 | 3 | 1 pc | 1,66 | |
35,6 | 344 | 195 | 4 | 3 | 1 pc | 1,74 | |
36 H11 | 339 | 190 | 4 | 3 | 1 pc | 1,75 | |
37,6 | 349 | 200 | 4 | 3 | 1 pc | 1,86 | |
38 H11 | 349 | 200 | 4 | 3 | 1 pc | 1,87 | |
37,6 | 349 | 200 | 4 | 3 | 1 pc | 2,03 | |
40 H11 | 349 | 200 | 4 | 3 | 1 pc | 2,04 | |
41,6 | 354 | 205 | 4 | 3 | 1 pc | 2,21 | |
42 H11 | 354 | 205 | 4 | 3 | 1 pc | 2,22 | |
43,6 | 359 | 210 | 4 | 3 | 1 pc | 2,38 | |
44 H11 | 359 | 210 | 4 | 3 | 1 pc | 2,39 | |
44,6 | 359 | 210 | 4 | 3 | 1 pc | 2,5 | |
45 H11 | 359 | 210 | 4 | 3 | 1 pc | 2,51 | |
45,6 | 364 | 215 | 4 | 3 | 1 pc | 2,575 | |
46 H11 | 364 | 215 | 4 | 3 | 1 pc | 2,585 | |
47,6 | 369 | 220 | 4 | 3 | 1 pc | 2,83 | |
48 H11 | 369 | 220 | 4 | 3 | 1 pc | 2,84 | |
49,6 | 369 | 220 | 4 | 3 | 1 pc | 3,015 | |
50 H11 | 369 | 220 | 4 | 3 | 1 pc | 3,025 |
Order example: B853501F000S 5 pcs |
