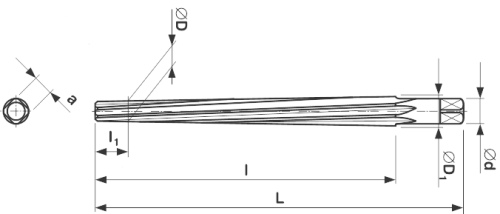

CSN 221469 - DIN 9 Form B

CSN 221469

Hand taper reamers 1 : 50

 HSS
DIN 9 Form A

  Workmanship:  Material: efficient high-speed steel HSS.
Left hand helix 7°, tool size Ø D= 2,0 mm is made with helping tool points 60°.

  Usability:  For hand reaming of holes for taper pins 1:50. By suitable clamping reamers can be used also for machine reaming.
Range:  Ø 3,00 ÷ 50,00 mm
Manufacturing Mode:  F Surface Treatment:




Ordering
Code		 Ø D
mm		 L
mm		 l1
mm		 l
mm		 Ø d
mm		 a
mm		 Ø D1
mm		 Even
teeth		 Packing
pce		 Weight
kg/pce
B690300F000S 3 80 5 58 4,0 3,15 4,06 4 1 ks 0,004
B690400F000S 4 93 5 68 5,0 4,0 5,26 4 1 ks 0,008
B690500F000S 5 100 5 73 6,3 5,0 6,36 5 1 ks 0,017
B690600F000S 6 135 5 105 8,0 6,3 8,0 6 1 ks 0,027
B690800F000S 8 180 5 145 10,0 8,0 10,8 6 1 ks 0,06
B691000F000S 10 215 5 175 12,5 10,0 13,4 6 1 ks 0,102
B691200F000S 12 255 10 210 14,0 11,2 16,0 8 1 ks 0,245
B691400F000S 14 255 10 210 14,0 11,2 18,0 8 1 ks 0,3
B691600F000S 16 280 10 230 18,0 14,0 20,4 8 1 ks 0,43
B692000F000S 20 310 10 250 22,4 18,0 24,8 8 1 ks 0,715
B692500F000S 25 370 15 300 28,0 22,4 30,7 10 1 ks 1,418
B693000F000S 30 400 15 320 31,5 25,0 36,1 10 1 ks 2,040
B693200F000S 32 400 15 320 31,5 25,0 38,1 10 1 ks 2,48
B694000F000S 40 430 15 340 40,0 31,5 46,5 12 1 ks 3,60
B695000F000S 50 460 15 360 50,0 40,0 56,9 12 1 ks 5,80
Order example:  B691200F000S     5 pcs
