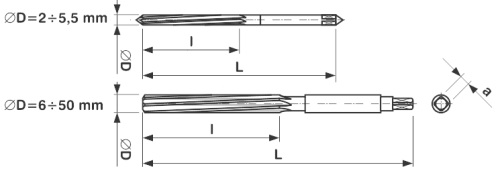

CSN 221420 - DIN 206 Form B
CSN 2214120 |
Hand reamers with straight shank |
HSS |
DIN 206 Form B | ||
Workmanship: Material: high-speed HSS.Workmanship with left hand helix 7° and uniform pitch. Diameter of the shank is equal with Ø D in tolerance f8. Reamers are produced for holes in size tolerances H7 and H8, contingently according customer´s wish. Usability: Reaming clear holes by repairing and piece work for all non-ferrous metal and ferrous metal, their alloys and plastics. |
||
Range: Ø 2,0 ÷ 50,0 mm (standardní provedení H7 a H8) |
Manufacturing Mode: F |
Surface Treatment:
![]() |
![]() |
![]() |
Ordering Code |
Ø D mm |
L mm |
l mm |
a mm |
Even teeth |
Packing pce |
Weight kg/pce |
2,0 | 50 | 25 | 1,60 | 4 | 1 pc | 0,001 | |
2,2 | 54 | 27 | 1,80 | 4 | 1 pc | 0,001 | |
2,5 | 58 | 29 | 2,00 | 4 | 1 pc | 0,002 | |
2,8 | 62 | 31 | 2,24 | 4 | 1 pc | 0,002 | |
3,0 | 62 | 31 | 2,24 | 4 | 1 pc | 0,003 | |
3,5 | 71 | 35 | 2,80 | 4 | 1 pc | 0,004 | |
4,0 | 76 | 38 | 3,15 | 4 | 1 pc | 0,005 | |
4,5 | 81 | 41 | 3,55 | 4 | 1 pc | 0,007 | |
5,0 | 87 | 44 | 4,00 | 4 | 1 pc | 0,010 | |
5,5 | 93 | 47 | 4,50 | 4 | 1 pc | 0,013 | |
6,0 | 93 | 47 | 4,50 | 6 | 1 pc | 0,017 | |
6,5 | 100 | 50 | 5,00 | 6 | 1 pc | 0,023 | |
7,0 | 107 | 54 | 5,60 | 6 | 1 pc | 0,028 | |
7,5 | 107 | 54 | 5,60 | 6 | 1 pc | 0,031 | |
8,0 | 115 | 58 | 6,30 | 6 | 1 pc | 0,036 | |
8,5 | 115 | 58 | 6,30 | 6 | 1 pc | 0,041 | |
9,0 | 124 | 62 | 7,10 | 6 | 1 pc | 0,051 | |
10,0 | 133 | 66 | 8,00 | 6 | 1 pc | 0,067 | |
11,0 | 142 | 71 | 9,00 | 6 | 1 pc | 0,087 | |
12,0 | 152 | 76 | 10,00 | 8 | 1 pc | 0,11 | |
13,0 | 152 | 76 | 10,00 | 8 | 1 pc | 0,13 | |
14,0 | 163 | 81 | 11,20 | 8 | 1 pc | 0,16 | |
15,0 | 163 | 81 | 11,20 | 8 | 1 pc | 0,19 | |
16,0 | 175 | 87 | 12,50 | 8 | 1 pc | 0,23 | |
17,0 | 175 | 87 | 12,50 | 8 | 1 pc | 0,26 | |
18,0 | 188 | 93 | 14,00 | 8 | 1 pc | 0,32 | |
19,0 | 188 | 93 | 14,00 | 8 | 1 pc | 0,37 | |
20,0 | 201 | 100 | 16,00 | 8 | 1 pc | 0,41 | |
21,0 | 201 | 100 | 16,00 | 8 | 1 pc | 0,46 | |
22,0 | 215 | 107 | 18,00 | 8 | 1 pc | 0,54 | |
23,0 | 215 | 107 | 18,00 | 8 | 1 pc | 0,57 | |
24,0 | 231 | 115 | 20,00 | 8 | 1 pc | 0,69 | |
25,0 | 231 | 115 | 20,00 | 8 | 1 pc | 0,73 | |
26,0 | 231 | 115 | 20,00 | 8 | 1 pc | 0,83 | |
27,0 | 247 | 124 | 22,40 | 10 | 1 pc | 0,94 | |
28,0 | 247 | 124 | 22,40 | 10 | 1 pc | 1,15 | |
30,0 | 247 | 124 | 22,40 | 10 | 1 pc | 1,21 | |
32,0 | 265 | 133 | 25,00 | 10 | 1 pc | 1,41 | |
34,0 | 284 | 142 | 28,00 | 10 | 1 pc | 1,71 | |
36,0 | 284 | 142 | 28,00 | 10 | 1 pc | 1,9 | |
38,0 | 305 | 152 | 31,50 | 10 | 1 pc | 2,345 | |
40,0 | 305 | 152 | 31,50 | 10 | 1 pc | 2,53 | |
42,0 | 305 | 152 | 31,50 | 12 | 1 pc | 2,98 | |
44,0 | 326 | 163 | 35,50 | 12 | 1 pc | 3,38 | |
45,0 | 326 | 163 | 35,50 | 12 | 1 pc | 3,63 | |
46,0 | 326 | 163 | 35,50 | 12 | 1 pc | 3,85 | |
48,0 | 347 | 174 | 40,00 | 12 | 1 pc | 4,34 | |
50,0 | 347 | 174 | 40,00 | 12 | 1 pc | 4,65 |
Order example: B200807F000S 5 pcs hodnota X(7=H7; 8=H8; 1=H11) |
