ZVSE 221469 - DIN 9 Form A

ZVSE 221469

Hand taper reamers 1:50

 HSS
DIN 9 Form A

  Workmanship:  Material: efficient high-speed steel HSS.

  Usability:  For hand reaming of holes for taper pins 1:50. By suitable clamping reamers can be used also for machine reaming.
Range:  Ø 3,00 ÷ 30,00 mm
Manufacturing Mode:  F Surface Treatment:

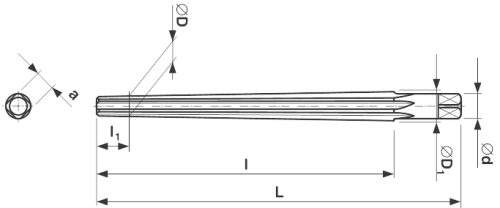

Ordering
Code		 Ø D
mm		 L
mm		 l1
mm		 l
mm		 Ø d
mm		 a
mm		 Ø D1
mm		 Even
teeth		 Packing
pce		 Weight
kg/pce
B690301F000S 3 80 5 58 4,0 3,15 4,06 4 1 ks 0,004
B690401F000S 4 93 5 68 5,0 4,0 5,26 4 1 ks 0,008
B690501F000S 5 100 5 73 6,3 5,0 6,36 5 1 ks 0,017
B690601F000S 6 135 5 105 8,0 6,3 8,0 6 1 ks 0,027
B690801F000S 8 180 5 145 10,0 8,0 10,8 6 1 ks 0,06
B691001F000S 10 215 5 175 12,5 10,0 13,4 6 1 ks 0,102
B691201F000S 12 255 10 210 14,0 11,2 16,0 8 1 ks 0,245
B691401F000S 14 255 10 210 14,0 11,2 18,0 8 1 ks 0,3
B691601F000S 16 280 10 230 18,0 14,0 20,4 8 1 ks 0,43
B692001F000S 20 310 10 250 22,4 18,0 24,8 8 1 ks 0,715
B692501F000S 25 370 15 300 28,0 22,4 30,7 10 1 ks 1,418
B693001F000S 30 400 15 320 31,5 25,0 36,1 10 1 ks 2,040
Order example:  B692501F000S     5 pcs
