CSN 221650

CSN 221650

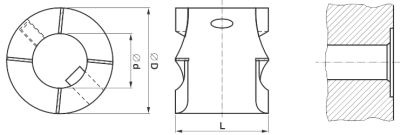

Shell two-sided spot-facing tool

 HSS
-

  Workmanship:  Material: efficient high-apeed steel HSS.
Workmanship four teeth, two sided.

  Usability:  Shell spot-facing tools are for spot facing support surfaces according to CSN 021021 for jointing components in steel, cast iron and other metallic materials. For clamping are used the abors CSN 241216.
Range:  Ø 18,00 ÷ 52,00 mm
Manufacturing Mode:  F Surface Treatment:




Ordering
Code		 Ø D
mm		 Ø d
mm		 L
mm		 Complete arbor
CSN 2411216		 Packing
pce		 Weight
kg/pce
C501802F000S 18 9 20 9 1 pc 0,03
C502206F000S 22 11 22 11 1 pc 0,045
C502610F000S 26 14 25 14 1 pc 0,075
C503012F000S 30 16 28 16 1 pc 0,09
C503314F000S 33 18 32 18 1 pc 0,13
C503616F000S 36 20 32 20 1 pc 0,15
C504018F000S 40 22 36 22 1 pc 0,21
C504320F000S 43 24 40 24 1 pc 0,27
C504822F000S 48 26 45 26 1 pc 0,39
C505225F000S 52 30 50 30 1 pc 0,5
Order example:  C503012F000S     5 pcs
