CSN 221460

CSN 221460

Hand taper reamers 1:10

 HSS
-

  Workmanship:  Material: efficient high-speed steel HSS.
Straight teeth uniform spacing.

  Usability:  For hand and machine reaming of cavities for taper ends of shafts 1:10.
Range:  Ø 10,00 ÷ 32,00 mm
Manufacturing Mode:  F Surface Treatment:




Ordering

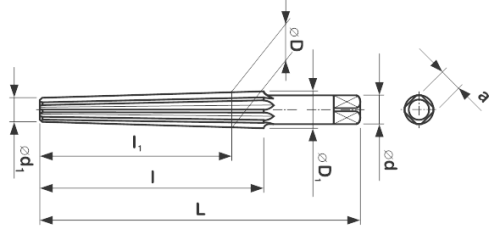

Code		 Ø D
mm		 L
mm		 l1
mm		 l
mm		 Ø d
mm		 a
mm		 Ø D1
mm		 Ø d1
mm		 Even
teeth		 Packing
pce		 Weight
kg/pce
B601000F000S 10 100 60 70 10,0 8 11 4 4 1 ks 0,035
B601600F000S 16 120 70 80 12,5 10 17 9 6 1 ks 0,092
B602400F000S 24 160 100 110 20,0 16 25 14 6 1 ks 0,304
B603200F000S 32 200 120 140 25,0 20 34 20 8 1 ks 0,69
Order example:  B601600F000S     5 pcs
