CSN 221445 - DIN 212 Form A, C

CSN 221445

Machine reamers with straight shank

 HSSCo
DIN 212 Form A, C

  Workmanship:  Material: efficient high-speed steel HSS.
Straight teeth with non-uniform spacing. Reamers are produced for holes with size tolerances H7 and H8, contingently according customer´s wish.

  Usability:  Machine reaming of holes in ferrous and non-ferrous metals, their alloys and plastics.
Reamers are not suitable for reaming holes with longitudinal flutes.
Range:  Ø 2,00 ÷ 16,00 mm   (tolerance H7 a H8)

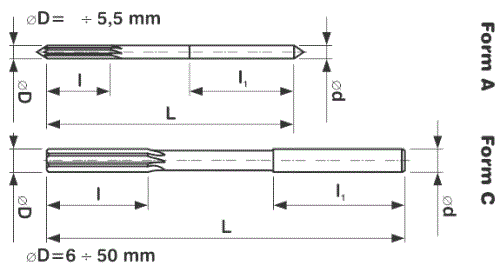

Manufacturing Mode:  V~Form A
    F~Form C		 Surface Treatment:




Ordering
Code		 Ø D
mm		 L
mm		 l
mm		 l1
mm		 Ø d
mm		 Even
teeth		 Packing
pce		 Weight
kg/pce
B45020XV400S 2,0 49 11 24 2,0 4 1 ks 0,001
B45022XV400S 2,2 53 12 26 2,2 4 1 ks 0,001
B45025XV400S 2,5 57 14 27 2,5 4 1 ks 0,002
B45028XV400S 2,8 61 15 28 2,8 6 1 ks 0,003
B45030XV400S 3,0 61 15 29 3,0 6 1 ks 0,003
B45032XV400S 3,2 65 16 30 3,2 6 1 ks 0,004
B45035XV400S 3,5 70 18 31 3,5 6 1 ks 0,005
B45040XV400S 4,0 75 19 32 4,0 6 1 ks 0,006
B45045XV400S 4,5 80 21 33 4,5 6 1 ks 0,009
B45050XV400S 5,0 86 23 34 5,0 6 1 ks 0,011
B45055XV400S 5,5 93 26 36 5,5 6 1 ks 0,013
B45060XF400S 6,0 93 26 36 6,0 6 1 ks 0,020
B45070XF400S 7,0 109 31 40 7,0 6 1 ks 0,028
B45080XF400S 8,0 117 33 42 8,0 6 1 ks 0,035
B45090XF400S 9,0 125 36 44 9,0 6 1 ks 0,050
B45100XF400S 10,0 133 38 46 10,0 6 1 ks 0,064
B45110XF400S 11,0 142 41 46 10,0 6 1 ks 0,085
B45120XF400S 12,0 151 41 46 10,0 8 1 ks 0,100
B45130XF400S 13,0 151 44 46 10,0 8 1 ks 0,120
B45140XF400S 14,0 160 47 50 12,5 8 1 ks 0,160
B45150XF400S 15,0 162 50 50 12,5 8 1 ks 0,168
B45160XF400S 16,0 170 52 50 12,5 8 1 ks 0,180
Order example:  B450808F400S     5 pcs          value X(7=H7; 8=H8; 1=H11)
